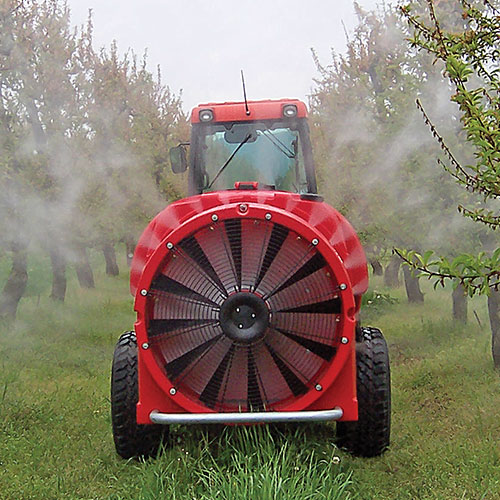

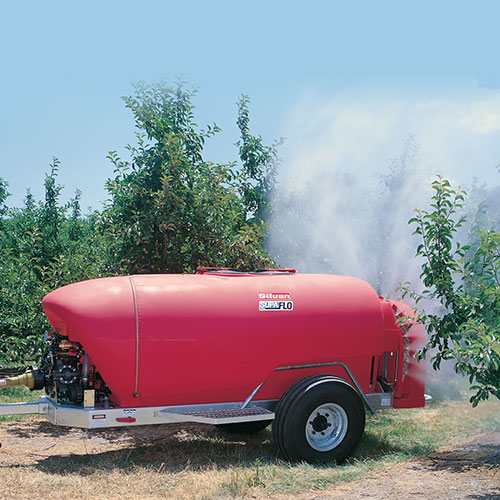

Trailed SUPAFLO 3500L sprayer
Trailed air assist Supaflo 3500 litre sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and a 900mm fan. Ideal for orchards with trees up to 4 metres high. Additional model available with 249L/min pump (DAB36AF7G).
Product Code: DAB33AF7G
specifications
Market: |
Horticulture |
|---|---|
Tank Size (L): |
3500 |
Connection Type: |
Trailed |
Min PTO HP: |
80 |
Pump Size (L/min): |
161 |
Height / Width / Length (MM): |
1800 / 1830 / 4755 |
Product Weight (KG): |
800 |
Application: |
Orchards. |
Product Enquiry
Find Your Nearest Dealer
Key Features
Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, anodised cast aluminium body with brass heads and manifolds. IDS1701: 161L/min. capacity, 5000kPa pressure.

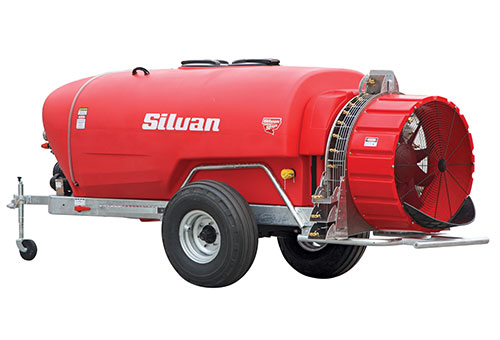

900mm axial flow type, 10 bladed fan with curved nylon reinforced blades with air straightening vanes and protective mesh cover. Powerhead and Radak fitted with 920mm axial flow type, 10 bladed fan, centrifugal clutch and protective mesh cover.
Flip-over type for dilute/concentrate spraying. Ceramic jets, stainless steel swirl-plates. 16 double sided nozzles (8 per side) twist on/off. The Powerhead has 24 double sided nozzles (12 per side) and the Radak has 32 (16 per side).
40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.
Galvanised steel with jockey wheel and adjustable drawbar.
