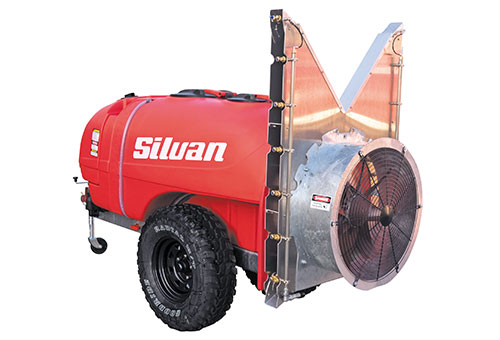

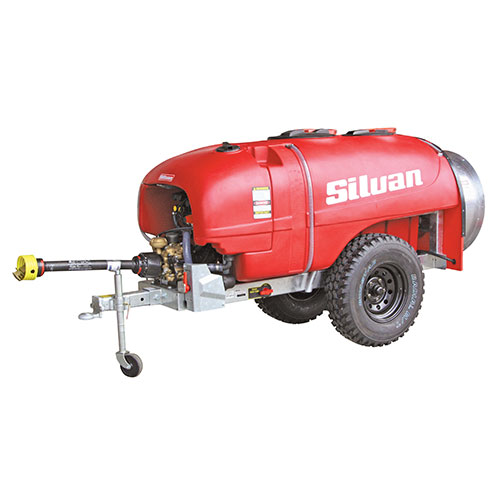

Trailed Compact Supaflo 1000L Sprayer
Trailed air assist Compact Supaflo 1000 litre sprayer with a 93L/min diaphragm pump, 700mm fan and electric valve controls. Ideal for narrow vineyards, orchards and trellis tomatoes.
Product Code: AB11AF8R
specifications
Market: |
Horticulture Viticulture |
|---|---|
Tank Size (L): |
1000 |
Connection Type: |
Trailed |
Min PTO HP: |
40 |
Pump Size (L/min): |
93 |
Height / Width / Length (MM): |
1500 / 1100 / 2860 |
Product Weight (KG): |
300 |
Application: |
Vineyards and Orchards |
Product Enquiry
Find Your Nearest Dealer
Key Features
Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifold. IDS960:93L/min. capacity, 5000kPa pressure. IDS1401:135L/min. capacity, 5000kPa pressure.
700mm axial flow type, 8 bladed fan with curved nylon reinforced blades and protective mesh cover.
Flip-over type for dilute/concentrate spraying. Ceramic HCC nozzles. 12 double sided nozzles (6 per side) twist on/off.
40 Bar electric section valves, master valve, electric pressure regulator and in-cab controls.
Galvanised steel with jockey wheel and adjustable drawbar.
“I visited Silvan several times while the sprayer was being built and their team was extremely helpful throughout the planning and building process.”
