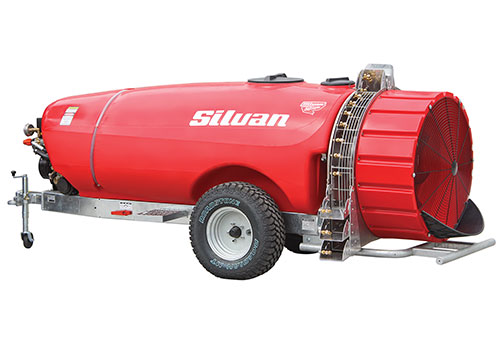

Trailed Stiletto Powerhead 2000L Sprayer
Trailed air assist Stiletto 2000 litre sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and Powerhead conveyor with 920mm fan. Ideal for orchards with trees up to 5 metres high. Additional model available with Bravo 180S automatic rate controller (DST23PB8G).
Product Code: DST23PF8G
specifications
Market: |
Horticulture |
|---|---|
Tank Size (L): |
2000 |
Connection Type: |
Trailed |
Min PTO HP: |
60 |
Pump Size (L/min): |
161 |
Height / Width / Length (MM): |
1500 / 1700 / 4100 |
Product Weight (KG): |
680 |
Application: |
Orchards. |
Product Enquiry
Find Your Nearest Dealer
Key Features
Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifolds. IDS1701: 161L/min. capacity 5000kPa pressure.
920mm axial flow type, 10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement/disengagement and protective mesh cover.
24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl-plates per side.
40 bar electric section valves, master valve, electric pressure adjustment and in cab control.
Galvanised steel with jockey wheel and adjustable drawbar.
“I visited Silvan several times while the sprayer was being built and their team was extremely helpful throughout the planning and building process.”
