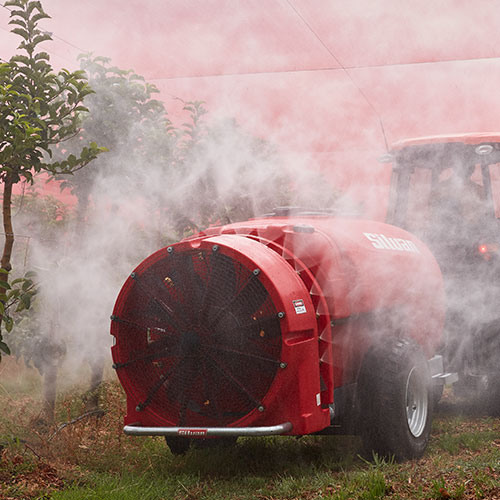

Trailed Supaflo 2000L Sprayer
Trailed air assist Supaflo 2000 litre sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and a 900mm fan. Ideal for vineyards and orchards.
Product Code: DAB23AF8G
specifications
Market: |
Horticulture Viticulture |
|---|---|
Tank Size (L): |
2000 |
Connection Type: |
Trailed |
Min PTO HP: |
60 |
Pump Size (L/min): |
161 |
Height / Width / Length (MM): |
1530 / 1540 / 3750 |
Product Weight (KG): |
640 |
Application: |
Vineyards and Orchards |
Product Enquiry
Find Your Nearest Dealer
Key Features
Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifold. IDS1701:161L/min. capacity, 5000kPa pressure.
900mm axial flow type, 10 bladed fan with curved nylon reinforced blades, air straightening vanes and protective mesh cover. Powerhead & Radak fitted with 920mm axial flow type, 10 bladed fan, centrifugal clutch and protective mesh cover.
Flip-over type for dilute/concentrate spraying. Ceramic jets, stainless steel swirl-plates. 16 double sided nozzles (8 per side) twist on/off. The Powerhead has 24 double sided nozzles (12 per side) and the Radak has 32 (16 per side).
40 bar electric section valves, master valve, electric pressure regulator and in cab controls.
Galvanised steel with jockey wheel & adjustable drawbar.
