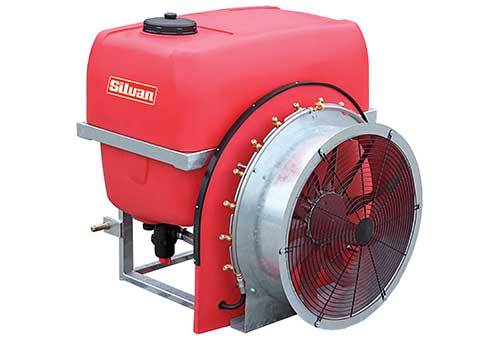

SUNTUFF 500L Linkage Sprayer
Linkage air assist Suntuff 500 litre sprayer with a 88L/min diaphragm pump and 800mm fan. Ideal for smaller vineyards or orchards and smaller horsepower tractors. Additional option available with electric controls D058-96E.
Product Code: D058-96
specifications
Market: |
Viticulture Horticulture |
|---|---|
Tank Size (L): |
500 |
Connection Type: |
Linkage |
Min PTO HP: |
40 |
Pump Size (L/min): |
88 |
Height / Width / Length (MM): |
1325 / 1190 / 1400 |
Product Weight (KG): |
140 |
Application: |
Vineyards and Orchards |
Product Enquiry
Find Your Nearest Dealer
Key Features
Silvan oil-backed diaphragm type with nitrile diaphragms andcorrosion resistant, cast anodised aluminium body. APS96: 88L/min. capacity 5000kPa pressure
Axial flow type, fan with curved nylon reinforced blades, galvanised cowling and protective mesh cover. 800mm with 10 blades on 500L unit
Flip-over type for dilute/concentrate spraying, ceramic jets, stainless steel swirl-plates. 500L unit: 14 flip over nozzles (7 per side) twist on/off
3 outlet with pressure regulator. 500L models standard with extra length hoses - for tractor control mount.
Galvanised steel, suit cat I & II linkage
